Description：

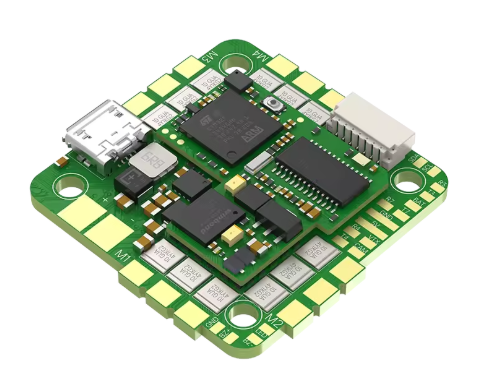

• This is our new iFlight BLITZ series AIO FCs for your ultimate build. A future proof all-in-one FC to step up the game and make some more room for future flight firmware development like Betaflight, Emuflight etc. Lightweight, minimum size, minimum work.This could only be achieved by using BGA chipsets instead of ordinary QFP (big size) MCUs and ultra powerful Mosfets for almost any build. Solder your motor wires on and let's go!

Features

• Separated Flight Control board to minimize electrical gyro noise

• Pass-through DJI O3 and Caddx Vista/Polar Connector

• FC PCB can be disassembled from the ESC PCB; Repair allowed!

• MCU: BGA-STM32F745, 216MHz

• OSD: AT7456E

• Blackbox: 16MB Onboard Flash

• Gyro: ICM42688

FC Specifications

• MCU: BGA-STM32F745

• Gyro: ICM42688

• Blackbox: 16MB Onboard Flash

• BEC output: 5V 2.5A

• WS2812 LED Strip: Yes

• Buzzer: Yes

• Barometer: DPS310

• Connector: Micro-USB

• OSD: IFLIGHT OSD (AT745E）

• FC Firmware：IFLIGHT_BLITZ_F7_AIO

• Mounting pattern: 25.5*25.5mm φ3mm

• Dimensions: 35*35mm

• Weight: 10.5g

• BEC: 5V 2A / 3A


• Input voltage: 2-6S, support LIHV battery

• Smartaudio / IRC Tramp VTX protocol supported

ESC Specifications

• ESC MCU: BB21
